M2000·4-Bolt Pillow Block
4-1/2 M2000 4-BOLT PILLOW BLOCK NON-EXPANSION
19241408
Made of Cast Iron, this Solid M2000 4-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 4 1⁄2 in (4.5000 in) shaft size. Includes a Steel Set Screw Locking Insert with a Single Collar, an available Standard Triple Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19241408
Series
M2000
Housing Type
4-Bolt Pillow Block
Shaft Size
4 1⁄2" (4.5″ / 114.3 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
72 lb
Insert Number
SLAA22-408
Housing Number
11421407
Static Load
126000 lbf
Dynamic Load
91700 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
1325 in-lbs
Radial Slip Resistance
11000 lbf
Open End Cap Part #
18621407
Closed End Cap Part #
18620407
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard Triple Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
1150
Housing Coating
Standard Painted
Collar Type
Single Collar

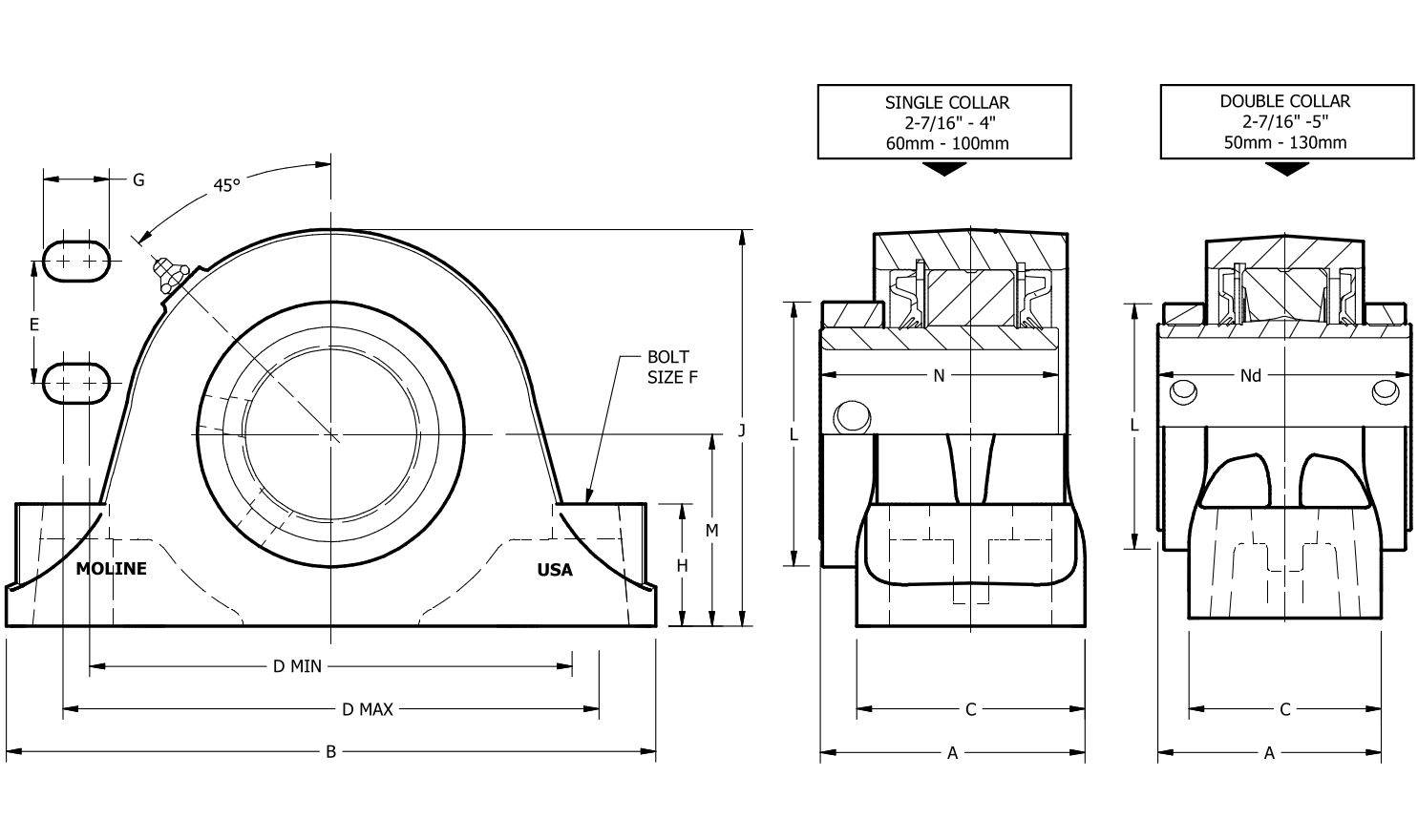

AOverall Unit Width - Single Collar5 1⁄2
BHousing Base Length16 1⁄2
CHousing Base Width4 3⁄4
DBolt Hole Center to Center13 1⁄2
Min DBolt Hole Center to Center Minimum13
Max DBolt Hole Center to Center Maximum14
EBolt Spacing [Width]2 1⁄2
FBolt Diameter [Nominal]3⁄4
GBolt Hole Slot Length1 5⁄16
HHousing Base Height2 3⁄4
JOverall Housing Height9 1⁄2
LDrive Collar Outside Diameter [OD]6 1⁄8
MBase to Center Height4 3⁄4
NLength Through Bore - Single Collarn/a
NdLength Through Bore - Double Collar6 1⁄4
Product Variants
4-1/2 M2000 4-BOLT PILLOW BLOCK NON-EXPANSION WITH LABYRINTH SEALS
19241408L
4 1⁄2"
4-1/2 M2000 4-BOLT PILLOW BLOCK NON-EXPANSION WITH DOUBLE COLLAR INSERT & LABYRINTH SEALS
19241408DL
4 1⁄2"
4-1/2 M2000 4-BOLT PILLOW BLOCK NON-EXPANSION WITH DOUBLE COLLAR INSERT
19241408D
4 1⁄2"
4-1/2 M2000 4-BOLT PILLOW BLOCK NON-EXPANSION WITH DOUBLE COLLAR INSERT & GARTER SEALS
19241408DG
4 1⁄2"
4-1/2 M2000 4-BOLT PILLOW BLOCK NON-EXPANSION WITH GARTER SEALS
19241408G
4 1⁄2"
