M2000·2-Bolt Pillow Block
90MM M2000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH DOUBLE COLLAR INSERT & GARTER SEALS
19221090DG
Made of Cast Iron, this Solid M2000 2-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 90mm mm (3.5433 in) shaft size. Includes a Steel Set Screw Locking Insert with a Double Collar, an available Spring Loaded Garter Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19221090DG
Series
M2000
Housing Type
2-Bolt Pillow Block
Shaft Size
90mm (3.5433″ / 90 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
31.6 lb
Insert Number
SLA18-090
Static Load
76400 lbf
Dynamic Load
56900 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
1325 in-lbs
Radial Slip Resistance
6800 lbf
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Spring Loaded Garter Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
800
Housing Coating
Standard Painted
Collar Type
Double Collar

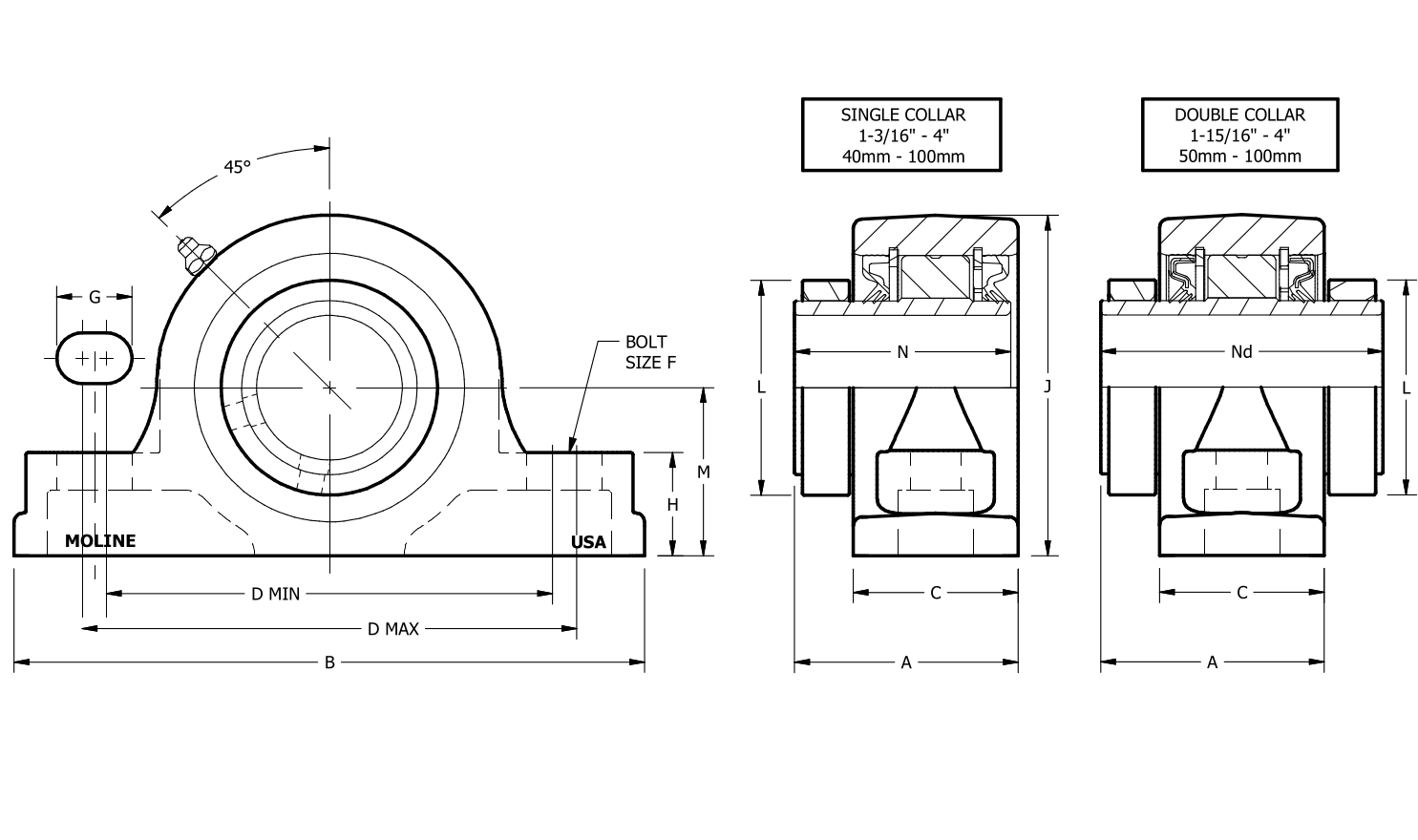

AOverall Unit Width - Single Collar4 1⁄4
BHousing Base Length13
CHousing Base Width3 1⁄4
DBolt Hole Center to Center10
Min DBolt Hole Center to Center Minimum9 1⁄2
Max DBolt Hole Center to Center Maximum10 1⁄2
FBolt Diameter [Nominal]7⁄8
GBolt Hole Slot Length1 7⁄16
HHousing Base Height2 1⁄4
JOverall Housing Height7 1⁄2
LDrive Collar Outside Diameter [OD]5 1⁄8
MBase to Center Height3 3⁄4
NLength Through Bore - Single Collar4 1⁄32
NdLength Through Bore - Double Collar5 3⁄16
Product Variants
90MM M2000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH DOUBLE COLLAR INSERT
19221090D
90mm
90MM M2000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH DOUBLE COLLAR INSERT & LABYRINTH SEALS
19221090DL
90mm
90MM M2000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH GARTER SEALS
19221090G
90mm
90MM M2000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH LABYRINTH SEALS
19221090L
90mm
90MM M2000 2-BOLT PILLOW BLOCK NON-EXPANSION
19221090
90mm
