M2000·4-Bolt Flange
65MM M2000 4-BOLT FLANGE NON-EXPANSION
19211065

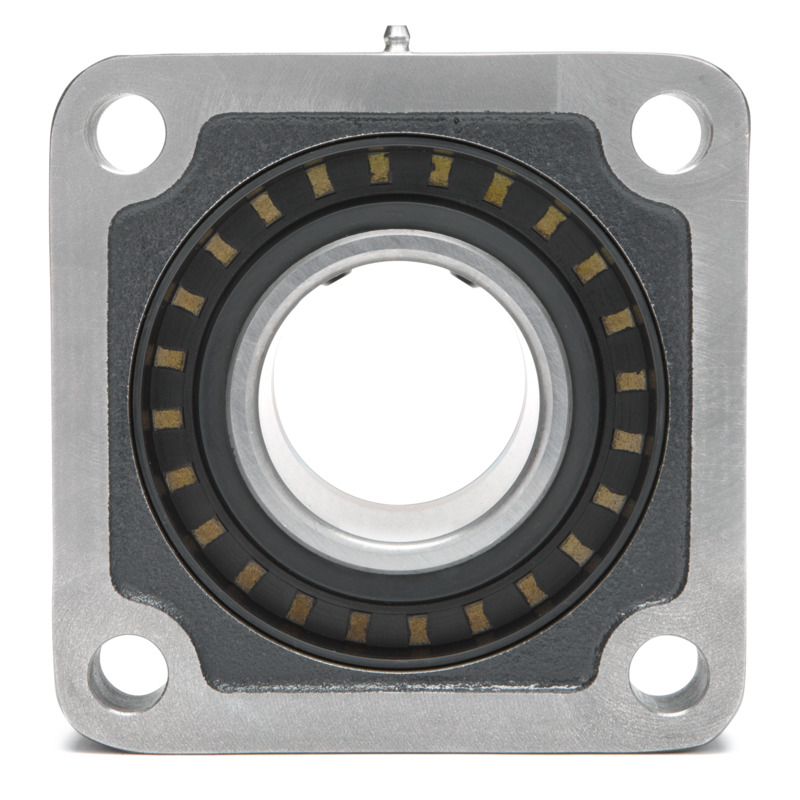

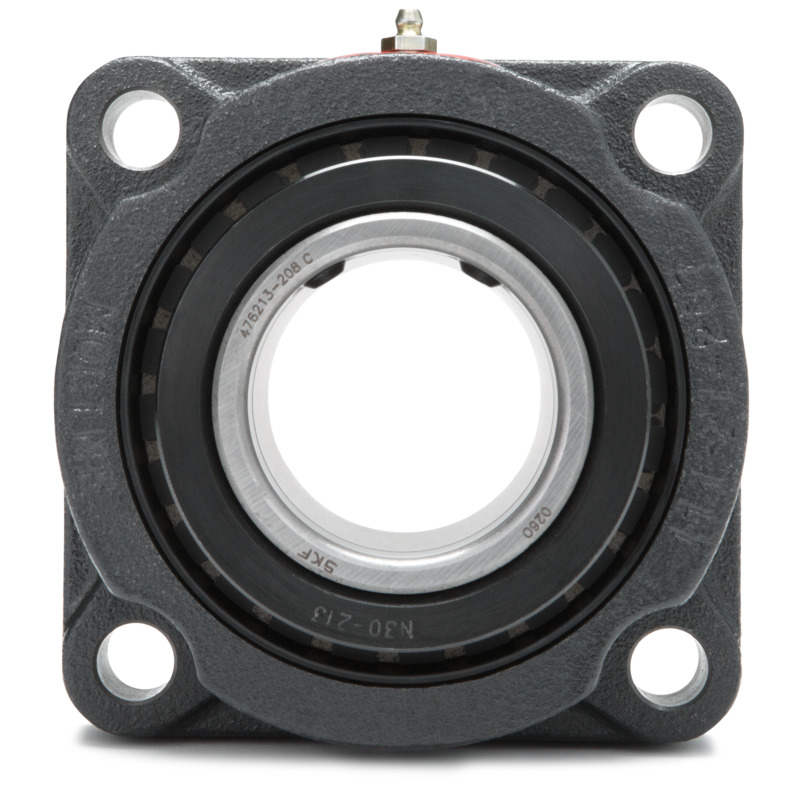

Made of Cast Iron, this Solid M2000 4-Bolt Flange is a Non-Expansion Mounted Roller Bearing Bearing with a 65mm mm (2.5591 in) shaft size. Includes a Steel Set Screw Locking Insert with a Single Collar, an available Standard Triple Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
Part Number
19211065
Series
M2000
Housing Type
4-Bolt Flange
Shaft Size
65mm (2.5591″ / 65 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
16.5 lb
Insert Number
SLA13-065
Housing Number
11121207
Static Load
41100 lbf
Dynamic Load
33300 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
290 in-lbs
Radial Slip Resistance
4000 lbf
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
Cast Iron
Seal Type
Standard Triple Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
1800
Housing Coating
Standard Painted
Collar Type
Single Collar
Housing Height Above Mounting Surface (A)
3 9⁄16
Housing Base Length (B)
6 1⁄8
Overall Housing Height (C)
2 3⁄4
Bolt Hole Center to Center (Center to Center D)
4 25⁄32
Bolt Hole Center to Center Diameter (E)
6 3⁄4
Bolt Diameter [Nominal] (F)
5⁄8
Housing Base Height (H)
1
Upper Housing Diameter (J)
5 3⁄4
Drive Collar Outside Diameter [OD] (L)
4
Length Through Bore - Single Collar (N)
3 3⁄8
Length Through Bore - Double Collar (Nd)
4 5⁄16
Housing Base Width
6 1⁄8
Product Variants
65MM M2000 4-BOLT FLANGE NON-EXPANSION WITH DOUBLE COLLAR INSERT & GARTER SEALS
19211065DG
65mm
65MM M2000 4-BOLT FLANGE NON-EXPANSION WITH DOUBLE COLLAR INSERT & LABYRINTH SEALS
19211065DL
65mm
65MM M2000 4-BOLT FLANGE NON-EXPANSION WITH DOUBLE COLLAR INSERT
19211065D
65mm
65MM M2000 4-BOLT FLANGE NON-EXPANSION WITH GARTER SEALS
19211065G
65mm
65MM M2000 4-BOLT FLANGE NON-EXPANSION WITH LABYRINTH SEALS
19211065L
65mm
