M2000·Piloted Flange
60MM M2000 PILOTED FLANGE EXPANSION
19131060
Made of Cast Iron, this Solid M2000 Piloted Flange is a Expansion Mounted Roller Bearing Bearing with a 60mm mm (2.3622 in) shaft size. Includes a Steel Set Screw Locking Insert with a Single Collar, an available Standard Triple Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19131060
Series
M2000
Housing Type
Piloted Flange
Shaft Size
60mm (2.3622″ / 60 mm)
Expansion / Non-Expansion
Expansion
Weight
16 lb
Insert Number
SLA13-060
Housing Number
11321207
Static Load
41100 lbf
Dynamic Load
33300 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
290 in-lbs
Radial Slip Resistance
4000 lbf
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard Triple Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
1800
Housing Coating
Standard Painted
Collar Type
Single Collar

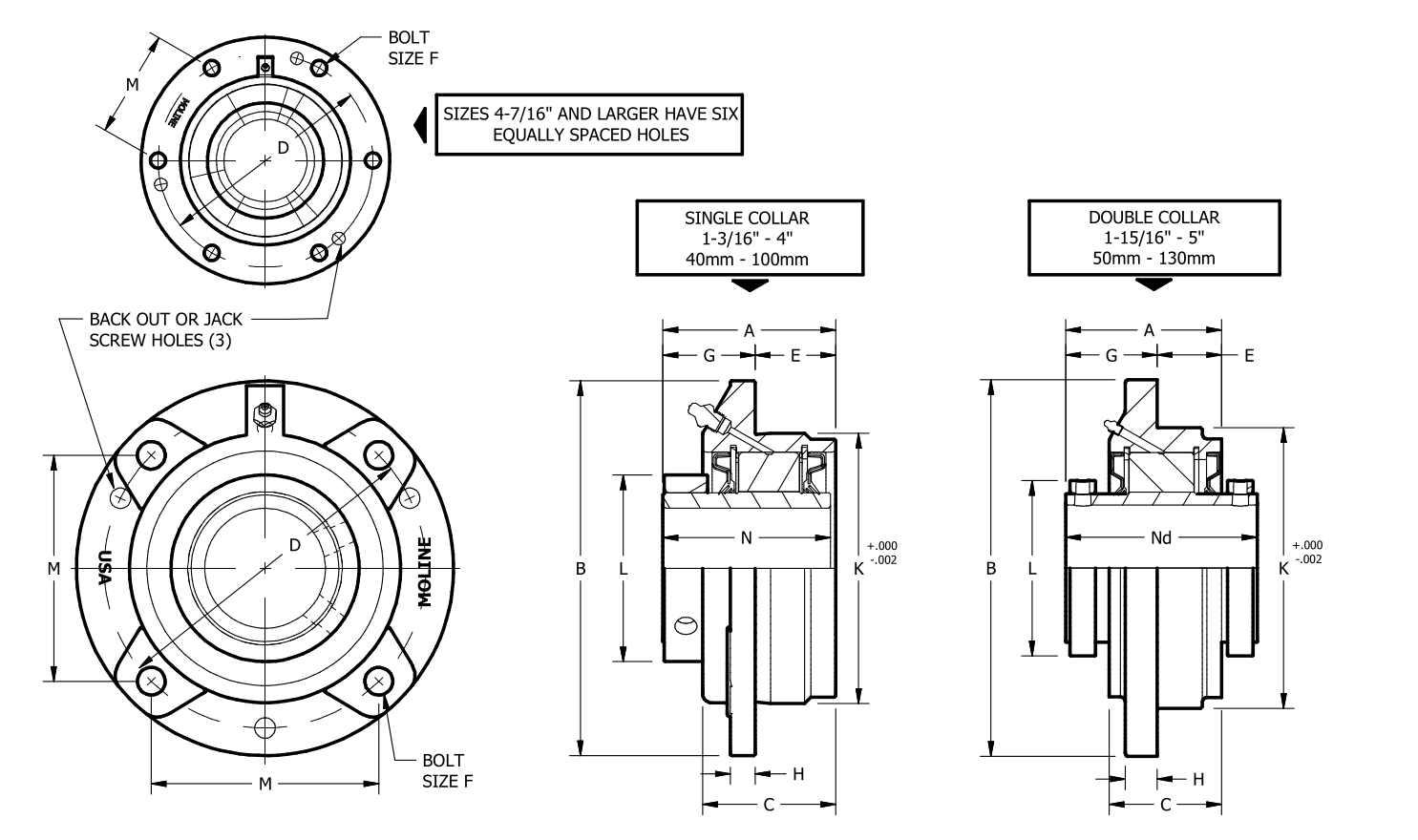

AOverall Unit Height - Single Collar3 1⁄2
BHousing Base Diameter7 5⁄8
CHousing Height2 11⁄16
DBolt Hole Center to Center Diameter6 1⁄2
EPilot Depth1
FBolt Diameter [Nominal]1⁄2
GOverall Height Above Mounting Surface1 7⁄8
HHousing Base Height5⁄8
KPilot Diameter5 1⁄2
LDrive Collar Outside Diameter [OD]4
MBolt Hole Center to Center4 19⁄32
NLength Through Bore - Single Collar3 3⁄8
NdLength Through Bore - Double Collar4 5⁄16
Product Variants
60MM M2000 PILOTED FLANGE EXPANSION WITH LABYRINTH SEALS
19131060L
60mm
60MM M2000 PILOTED FLANGE EXPANSION WITH DOUBLE COLLAR INSERT & GARTER SEALS
19131060DG
60mm
60MM M2000 PILOTED FLANGE EXPANSION WITH DOUBLE COLLAR INSERT & LABYRINTH SEALS
19131060DL
60mm
60MM M2000 PILOTED FLANGE EXPANSION WITH GARTER SEALS
19131060G
60mm
60MM M2000 PILOTED FLANGE EXPANSION WITH DOUBLE COLLAR INSERT
19131060D
60mm
