Moline Bearing
3-1/4 SPLIT E1000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH SINGLE COLLAR INSERT & LABYRINTH SEALS
Pricing and availability are confirmed by our sales team after a quote request is submitted. Add this item to your quote and we'll respond with lead time and pricing within one business day.
Split E1000·2-Bolt Pillow Block

3-1/4 SPLIT E1000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH SINGLE COLLAR INSERT & LABYRINTH SEALS

49322304AL

Made of Cast Iron, this Split Split E1000 2-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 3 1⁄4 in (3.2500 in) shaft size. Includes a Steel Set Screw Locking Insert with a Single Collar, an available Balanced Steel and Teflon Labyrinth Seal made of Metal, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.

  • Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
49322304AL
Series
Split E1000
Housing Type
2-Bolt Pillow Block
Shaft Size
3 1⁄4" (3.25″ / 82.55 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
59 lb
Insert Number
NPE42325DEE-401C4
Top Housing Number (Split)
11272307
Bottom Housing Number (Split)
11282307
PDF Catalog
Static Load
108000 lbf
Dynamic Load
19600 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
620 in-lbs
Radial Slip Resistance
16000 lbf
Open End Cap Part #
18621303
Closed End Cap Part #
18600307
Angular Misalignment (Degrees)
4
Product Family
Mounted Roller Bearing
Rolling Element
Tapered Roller
Housing Construction
Split
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
654-45-12 Ductile Iron
Seal Type
Balanced Steel and Teflon Labyrinth Seal
Seal Type Material
Metal
Seal Type Operating Range (F)
0° - 350°
Seal Type Maximum Speed (RPM)
1640
Housing Coating
Standard Painted
Collar Type
Single Collar

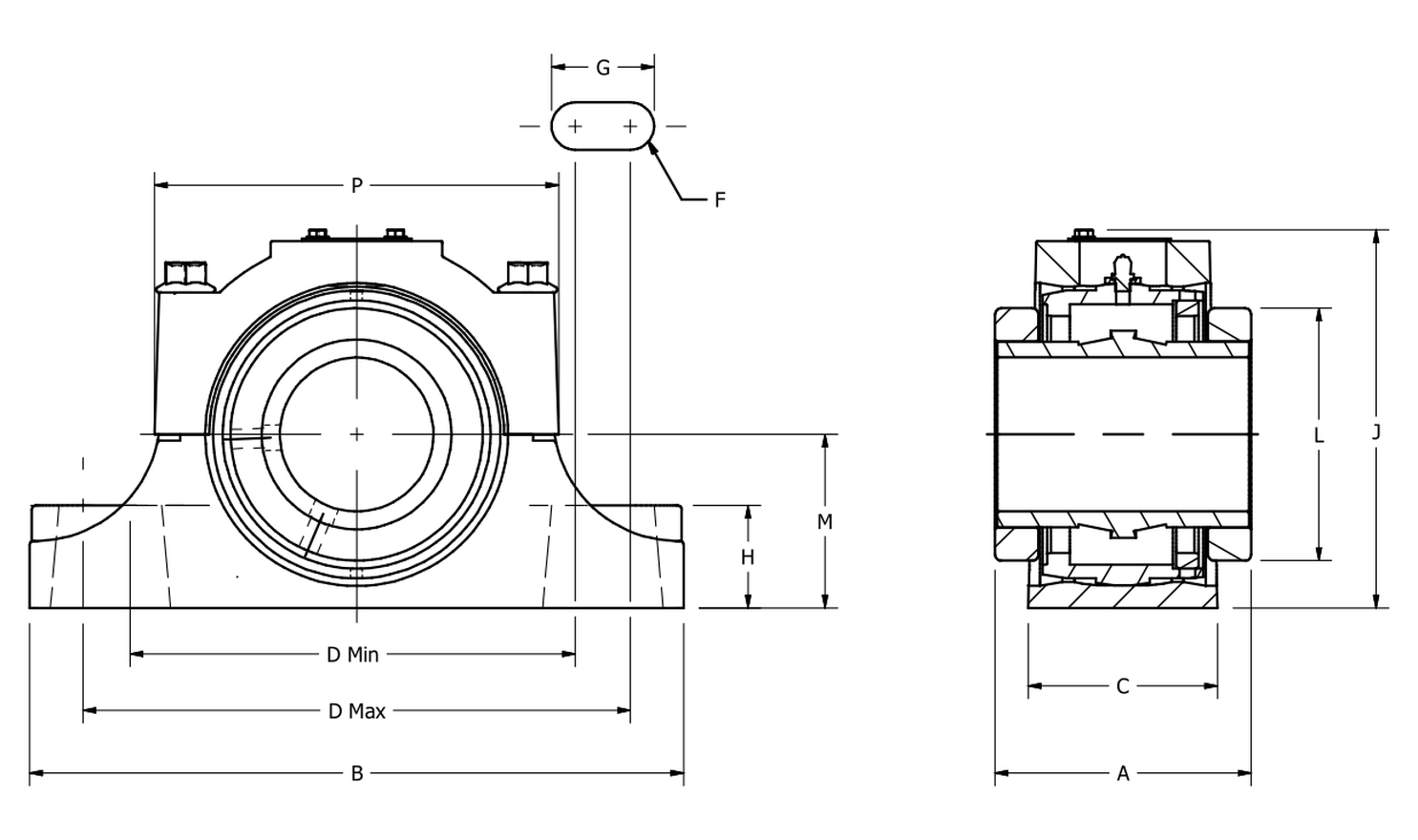

Split E1000 2-Bolt Pillow Block dimensional drawing
ALength Through Bore5
BHousing Base Length13 3⁄4
CHousing Base Width4 1⁄16
DBolt Hole Center to Center10 15⁄16
Min DBolt Hole Center to Center Minimum10 1⁄8
Max DBolt Hole Center to Center Maximum11 3⁄4
FBolt Diameter [Nominal]7⁄8
GBolt Hole Slot Length1 13⁄16
HHousing Base Height2 1⁄4
JOverall Housing Height7 15⁄16
LDrive Collar Outside Diameter [OD]5 5⁄16
MBase to Center Height3.75
PHousing Height Above Mounting Surface9 3⁄8
—Expansion Capability0.56
