Moline Bearing
2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION WITH SINGLE COLLAR INSERT
Pricing and availability are confirmed by our sales team after a quote request is submitted. Add this item to your quote and we'll respond with lead time and pricing within one business day.
Split E1000·4-Bolt Pillow Block

2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION WITH SINGLE COLLAR INSERT

39342204A

Made of Cast Iron, this Split Split E1000 4-Bolt Pillow Block is a Expansion Mounted Roller Bearing Bearing with a 2 1⁄4 in (2.2500 in) shaft size. Includes a Steel Set Screw Locking Insert with a Single Collar, an available Standard V-Guard Contact Seal made of Nitrile, Teflon and Steel, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.

  • Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
39342204A
Series
Split E1000
Housing Type
4-Bolt Pillow Block
Shaft Size
2 1⁄4" (2.25″ / 57.15 mm)
Expansion / Non-Expansion
Expansion
Weight
30 lb
Insert Number
NPE39225DEE-401C4
Top Housing Number (Split)
11272207
Bottom Housing Number (Split)
11482207
PDF Catalog
Static Load
54000 lbf
Dynamic Load
11600 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
290 in-lbs
Radial Slip Resistance
9500 lbf
Open End Cap Part #
18601207
Closed End Cap Part #
18620207
Angular Misalignment (Degrees)
0.05
Product Family
Mounted Roller Bearing
Rolling Element
Tapered Roller
Housing Construction
Split
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
65-45-12 Ductile Iron
Seal Type
Standard V-Guard Contact Seal
Seal Type Material
Nitrile, Teflon and Steel
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
2100
Housing Coating
Standard Painted
Collar Type
Single Collar

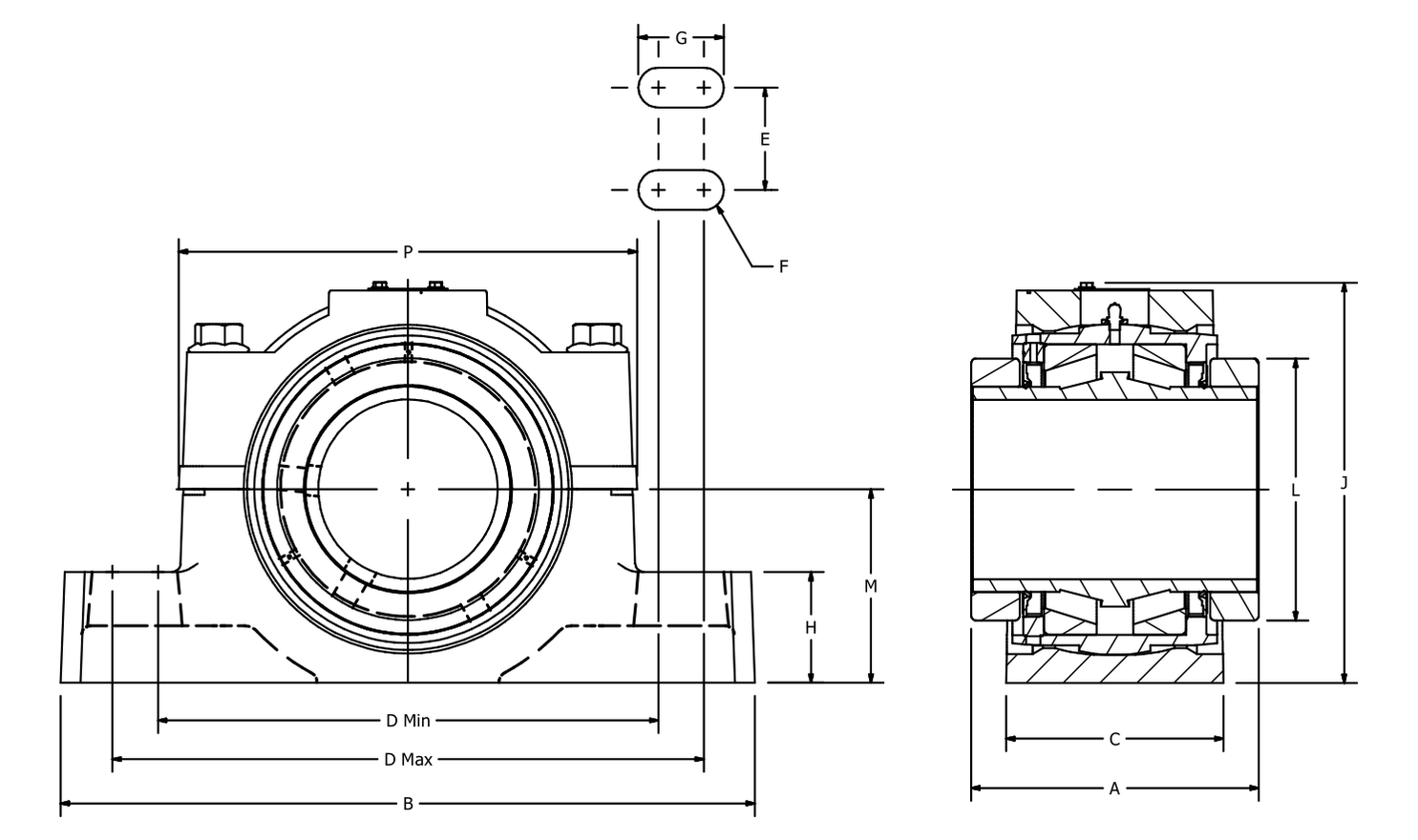

Split E1000 4-Bolt Pillow Block dimensional drawing
ALength Through Bore4
BHousing Base Length10 3⁄8
CHousing Base Width3 1⁄2
DBolt Hole Center to Center8 1⁄2
Min DBolt Hole Center to Center Minimum7 3⁄4
Max DBolt Hole Center to Center Maximum8 3⁄4
EBolt Spacing [Width]1 7⁄8
FBolt Diameter [Nominal]5⁄8
GBolt Hole Slot Length1 1⁄4
HHousing Base Height1 5⁄8
JOverall Housing Height6 1⁄8
LDrive Collar Outside Diameter [OD]4
MBase to Center Height2.75
PHousing Height Above Mounting Surface6 7⁄16
—Dimension EXP0.56

Product Variants

2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION WITH SINGLE COLLAR INSERT & LABYRINTH SEALS
2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION WITH SINGLE COLLAR INSERT & LABYRINTH SEALS
39342204AL
2 1⁄4"
2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION
2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION
39342204
2 1⁄4"
2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION WITH LABYRINTH SEALS
2-1/4 SPLIT E1000 4-BOLT PILLOW BLOCK EXPANSION WITH LABYRINTH SEALS
39342204L
2 1⁄4"
