ME3000·2-Bolt Pillow Block
1-3/4 ME3000 2-BOLT PILLOW BLOCK NON-EXPANSION WITH LABYRINTH SEALS
29721112L
Made of Cast Iron, this Solid ME3000 2-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 1 3⁄4 in (1.750 in) shaft size. Includes a Steel Even-Lok Insert with a Single Collar, an available Balanced Steel Labyrinth Seal made of Steel and Teflon, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
29721112L
Series
ME3000
Housing Type
2-Bolt Pillow Block
Shaft Size
1 3⁄4" (1.75″ / 44.45 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
10.5 lb
Insert Number
ABSY 22209-112
Static Load
19800 lbf
Dynamic Load
20200 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
290 in-lbs
Open End Cap Part #
18621112
Closed End Cap Part #
18620111
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Even-Lok
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Balanced Steel Labyrinth Seal
Seal Type Material
Steel and Teflon
Seal Type Operating Range (F)
0° - 350°
Seal Type Maximum Speed (RPM)
5400
Housing Coating
Standard Painted
Collar Type
Single Collar

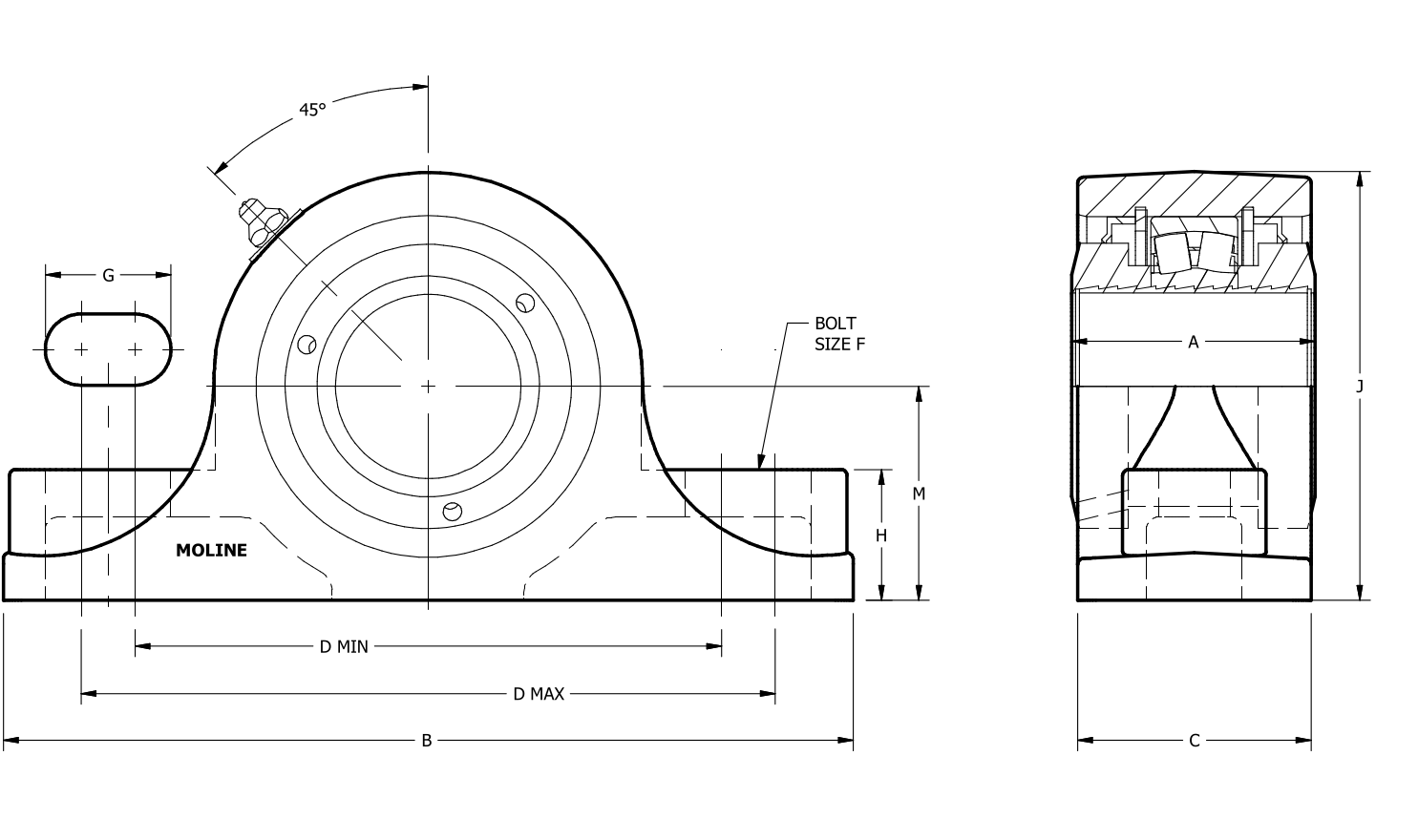

ALength Through Bore2 9⁄16
BHousing Base Length8 7⁄8
CHousing Base Width2 7⁄16
DBolt Hole Center to Center6 11⁄16
Min DBolt Hole Center to Center Minimum6 1⁄8
Max DBolt Hole Center to Center Maximum7 1⁄4
FBolt Diameter [Nominal]5⁄8
GBolt Hole Slot Length1 5⁄16
HHousing Base Height1 3⁄8
JOverall Housing Height4 1⁄2
MBase to Center Height2 1⁄4
