50MM ME2000 2-BOLT PILLOW BLOCK EXPANSION DOUBLE COLLAR
50MM ME2000 2-BOLT PB EXP - DOUBLE COLLAR
Pricing and availability are confirmed by our sales team after a quote request is submitted. Add this item to your quote and we'll respond with lead time and pricing within one business day.
ME2000·2-Bolt Pillow Block
50MM ME2000 2-BOLT PILLOW BLOCK EXPANSION DOUBLE COLLAR
29121050D
Made of Cast Iron, this Solid ME2000 2-Bolt Pillow Block is a Expansion Mounted Roller Bearing Bearing with a 50mm mm (1.9685 in) shaft size. Includes a Steel Set Screw Locking Insert with a Double Collar, an available Standard Triple Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
29121050D
Series
ME2000
Housing Type
2-Bolt Pillow Block
Shaft Size
50mm (1.9685″ / 50 mm)
Expansion / Non-Expansion
Expansion
Weight
10.2 lb
Insert Number
SLA10-050
Static Load
22500 lbf
Dynamic Load
19000 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
290 in-lbs
Radial Slip Resistance
2300 lbf
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard Triple Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
2400
Housing Coating
Standard Painted
Collar Type
Double Collar

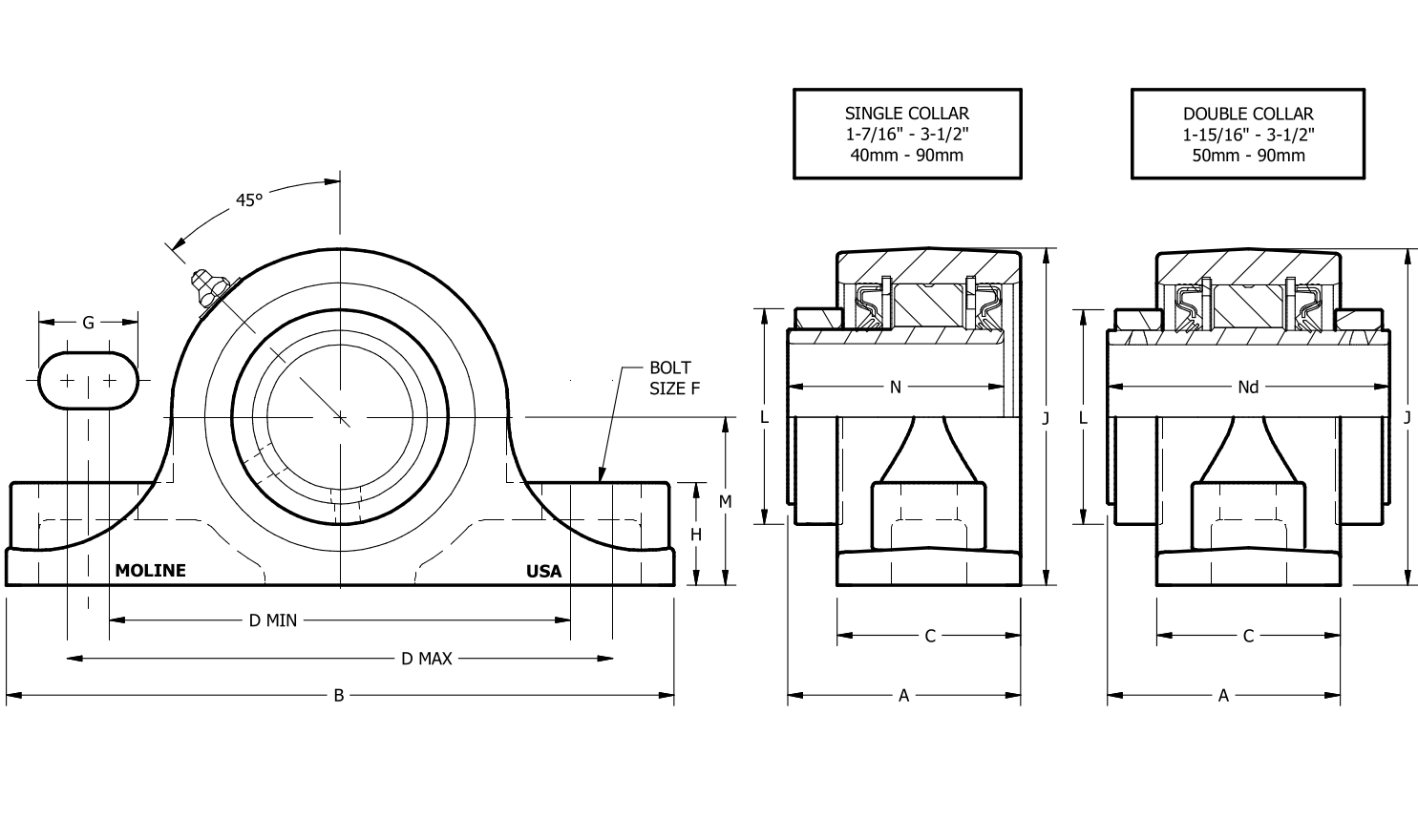

AOverall Unit Width - Single Collar3 1⁄8
BHousing Base Length8 7⁄8
CHousing Base Width2 7⁄16
DBolt Hole Center to Center6 11⁄16
Min DBolt Hole Center to Center Minimum6 1⁄8
Max DBolt Hole Center to Center Maximum7 1⁄4
FBolt Diameter [Nominal]5⁄8
GBolt Hole Slot Length1 5⁄16
HHousing Base Height1 3⁄8
JOverall Housing Height4 1⁄2
LDrive Collar Outside Diameter [OD]2 7⁄8
MBase to Center Height2 1⁄4
NLength Through Bore - Single Collar2 7⁄8
NdLength Through Bore - Double Collar3 3⁄4
Product Variants
50MM ME2000 2-BOLT PILLOW BLOCK EXPANSION
29121050
50mm
50MM ME2000 2-BOLT PILLOW BLOCK EXPANSION WITH LABYRINTH SEALS
29121050L
50mm
50MM ME2000 2-BOLT PILLOW BLOCK EXPANSION DOUBLE COLLAR WITH GARTER SEALS
29121050DG
50mm
50MM ME2000 2-BOLT PILLOW BLOCK EXPANSION DOUBLE COLLAR WITH LABYRINTH SEALS
29121050DL
50mm
50MM ME2000 2-BOLT PILLOW BLOCK EXPANSION WITH GARTER SEALS
29121050G
50mm
