M3000·4-Bolt Flange
3-1/2 M3000 4-BOLT FLANGE NON-EXPANSION
19711308
Made of Cast Iron, this Solid M3000 4-Bolt Flange is a Non-Expansion Mounted Roller Bearing Bearing with a 3 1⁄2 in (3.5000 in) shaft size. Includes a Steel Even-Lok Insert with a Single Collar, an available Standard Double Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19711308
Series
M3000
Housing Type
4-Bolt Flange
Shaft Size
3 1⁄2" (3.5″ / 88.9 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
35 lb
Insert Number
ABSY 22218-308
Housing Number
11121307
Static Load
76400 lbf
Dynamic Load
65200 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
1325 in-lbs
Open End Cap Part #
18621308
Closed End Cap Part #
18620307
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Even-Lok
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard Double Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
2100
Housing Coating
Standard Painted
Collar Type
Single Collar

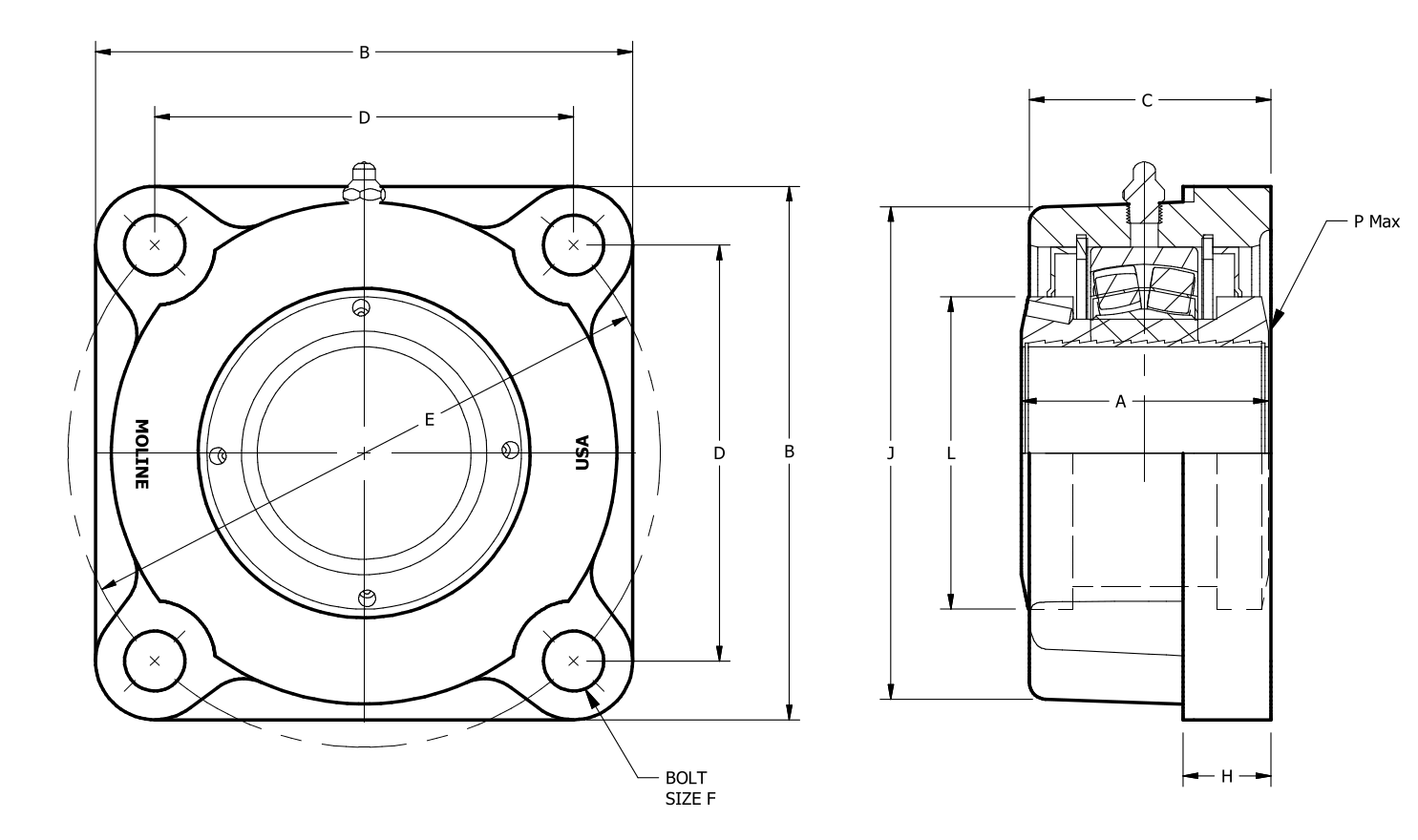

ALength Through Bore3 25⁄64
BHousing Base Length8 3⁄8
COverall Housing Height3 1⁄4
DBolt Hole Center to Center6 23⁄32
EBolt Hole Center to Center Diameter9 1⁄2
FBolt Diameter [Nominal]3⁄4
HHousing Base Height1 1⁄8
JUpper Housing Diameter7 5⁄8
LDrive Collar Outside Diameter [OD]4 3⁄4
—Housing Base Width8 3⁄8
—P Max0.02
