M3000·Wide Slot Take-up
2-1/2 M3000 WIDE SLOT TAKE-UP EXPANSION
19651208

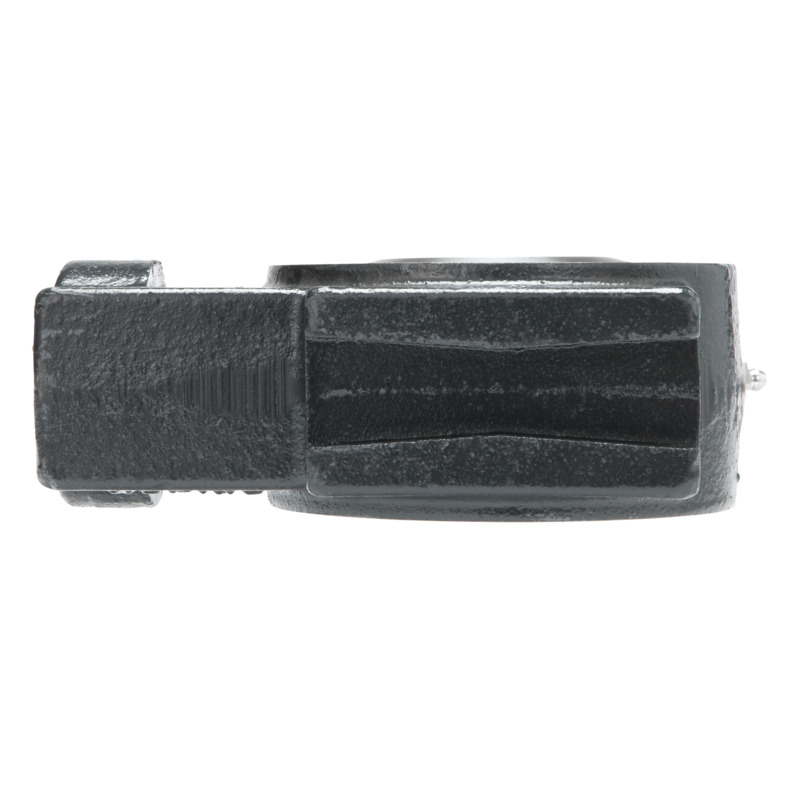

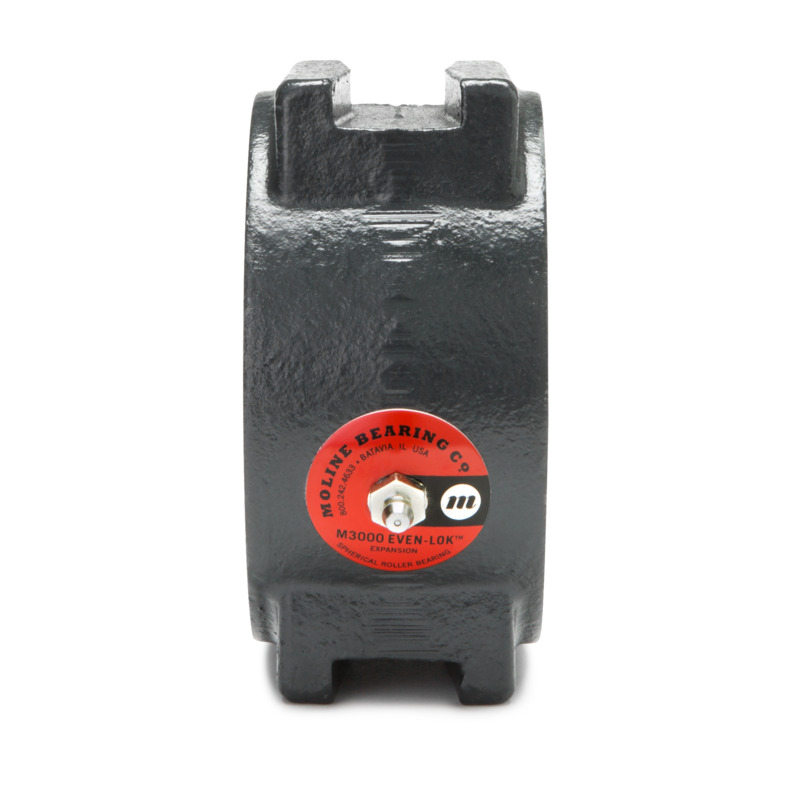

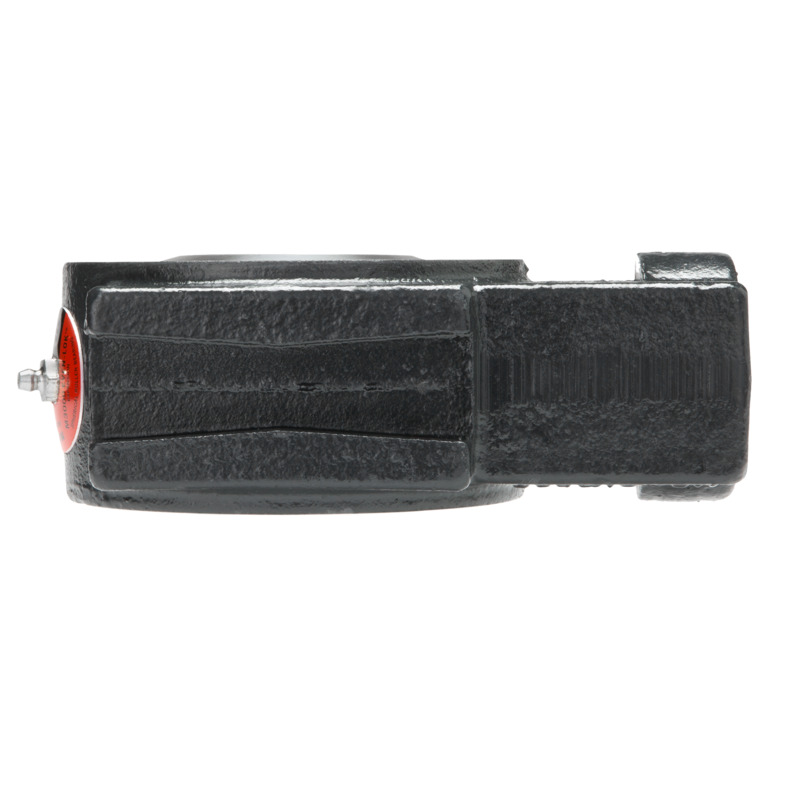

Made of Cast Iron, this Solid M3000 Wide Slot Take-up is a Expansion Mounted Roller Bearing Bearing with a 2 1⁄2 in (2.5000 in) shaft size. Includes a Steel Even-Lok Insert with a Single Collar, an available Standard Double Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19651208
Series
M3000
Housing Type
Wide Slot Take-up
Shaft Size
2 1⁄2" (2.5″ / 63.5 mm)
Expansion / Non-Expansion
Expansion
Weight
21 lb
Insert Number
ABSY 22213-208
Housing Number
11521207
Static Load
41100 lbf
Dynamic Load
43400 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
290 in-lbs
Open End Cap Part #
18621208
Closed End Cap Part #
18620207
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Even-Lok
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard Double Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
2700
Housing Coating
Standard Painted
Collar Type
Single Collar
ALength Through Bore2 13⁄16
BHousing Length7 13⁄16
CSlot Width1 1⁄32
DSlot Length4 1⁄2
EShaft Centerline to End of Tail5 1⁄16
FTravel Rod Diameter [Nominal]1 1⁄2
GEnd of Tail to Travel Nut Opening1 1⁄16
HTravel Nut Opening Length1 1⁄4
JTail Height4 1⁄4
KTravel Nut Opening Height2 1⁄2
MSlot to Slot Spacing5 1⁄8
NHousing Height6
THousing Width2 3⁄4
