M3000·Wide Slot Take-up
2-3/16 M3000 WIDE SLOT TAKE-UP EXPANSION
19651203
Made of Cast Iron, this Solid M3000 Wide Slot Take-up is a Expansion Mounted Roller Bearing Bearing with a 2 3⁄16 in (2.1875 in) shaft size. Includes a Steel Even-Lok Insert with a Single Collar, an available Standard Double Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19651203
Series
M3000
Housing Type
Wide Slot Take-up
Shaft Size
2 3⁄16" (2.1875″ / 55.56 mm)
Expansion / Non-Expansion
Expansion
Weight
16 lb
Insert Number
ABSY 22211-203
Housing Number
11521203
Static Load
30800 lbf
Dynamic Load
30100 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
290 in-lbs
Open End Cap Part #
18621203
Closed End Cap Part #
18620203
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Even-Lok
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard Double Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
3100
Housing Coating
Standard Painted
Collar Type
Single Collar

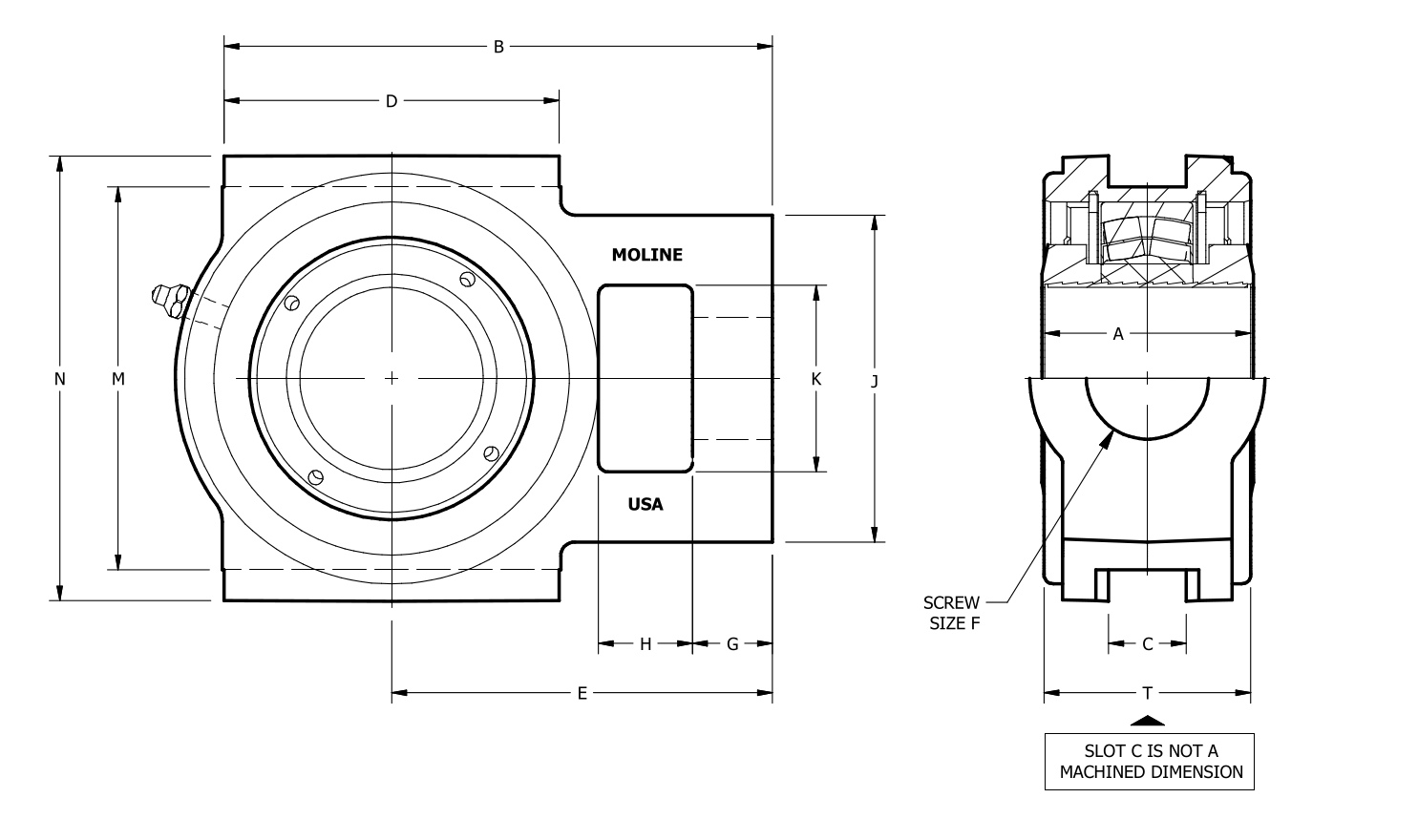

ALength Through Bore2 19⁄32
BHousing Length7 1⁄8
CSlot Width13⁄16
DSlot Length3 3⁄4
EShaft Centerline to End of Tail4 5⁄8
FTravel Rod Diameter [Nominal]1 1⁄8
GEnd of Tail to Travel Nut Opening1
HTravel Nut Opening Length1
JTail Height3 7⁄8
KTravel Nut Opening Height2 1⁄4
MSlot to Slot Spacing4 1⁄2
NHousing Height5 1⁄4
THousing Width2 9⁄16
