M3000·4-Bolt Pillow Block
2-11/16 M3000 4-BOLT PILLOW BLOCK EXPANSION
19641211
Made of Cast Iron, this Solid M3000 4-Bolt Pillow Block is a Expansion Mounted Roller Bearing Bearing with a 2 11⁄16 in (2.6875 in) shaft size. Includes a Steel Even-Lok Insert with a Single Collar, an available Standard Double Lip Contact Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19641211
Series
M3000
Housing Type
4-Bolt Pillow Block
Shaft Size
2 11⁄16" (2.6875″ / 68.26 mm)
Expansion / Non-Expansion
Expansion
Weight
26 lb
Insert Number
ABSY 22215-211
Housing Number
11421215
Static Load
54000 lbf
Dynamic Load
47700 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
620 in-lbs
Open End Cap Part #
18621211
Closed End Cap Part #
18620215
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Even-Lok
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard Double Lip Contact Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
2500
Housing Coating
Standard Painted
Collar Type
Single Collar

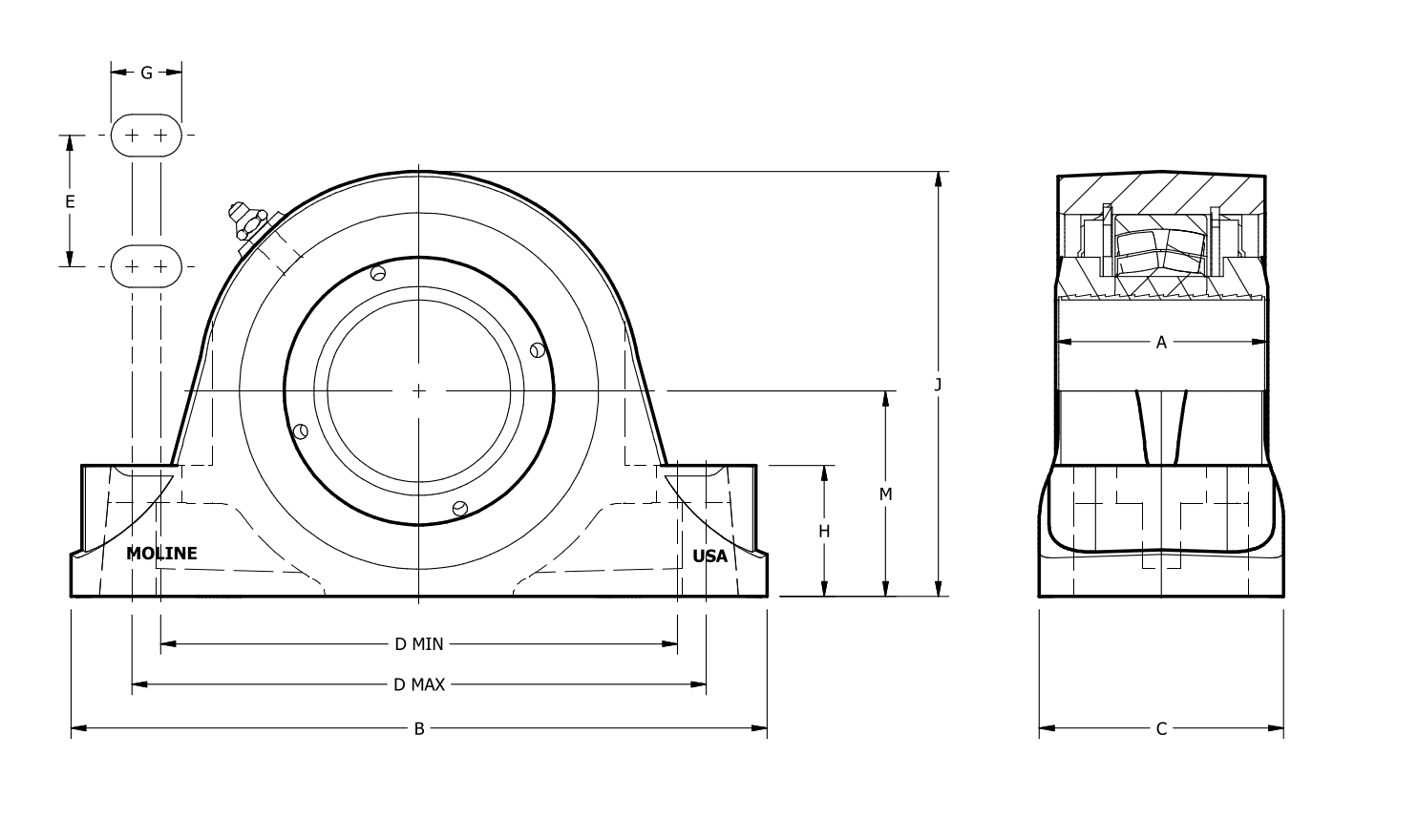

ALength Through Bore2 13⁄16
BHousing Base Length10 1⁄2
CHousing Base Width3 3⁄4
DBolt Hole Center to Center8 1⁄8
Min DBolt Hole Center to Center Minimum7 7⁄8
Max DBolt Hole Center to Center Maximum8 3⁄8
EBolt Spacing [Width]1 7⁄8
FBolt Diameter [Nominal]5⁄8
GBolt Hole Slot Length15⁄16
HHousing Base Height2 1⁄4
JOverall Housing Height6 7⁄16
MBase to Center Height3 1⁄4
