1-7/16 M3000 2-BOLT PILLOW BLOCK EXPANSION WITH LABYRINTH SEALS
1-7/16 M3000 2-BOLT PB EXP W/LABYRINTH SEALS
Pricing and availability are confirmed by our sales team after a quote request is submitted. Add this item to your quote and we'll respond with lead time and pricing within one business day.
M3000·2-Bolt Pillow Block
1-7/16 M3000 2-BOLT PILLOW BLOCK EXPANSION WITH LABYRINTH SEALS
19621107L
Made of Cast Iron, this Solid M3000 2-Bolt Pillow Block is a Expansion Mounted Roller Bearing Bearing with a 1 7⁄16 in (1.4375 in) shaft size. Includes a Steel Even-Lok Insert with a Single Collar, an available Balanced Steel Labyrinth Seal made of Nitrile, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19621107L
Series
M3000
Housing Type
2-Bolt Pillow Block
Shaft Size
1 7⁄16" (1.4375″ / 36.51 mm)
Expansion / Non-Expansion
Expansion
Weight
6.9 lb
Insert Number
ABSY 22208-107
Static Load
22000 lbf
Dynamic Load
22900 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
165 in-lbs
Open End Cap Part #
18621107
Closed End Cap Part #
18620107
Angular Misalignment (Degrees)
1.5
Product Family
Mounted Roller Bearing
Rolling Element
Spherical Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Even-Lok
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Balanced Steel Labyrinth Seal
Seal Type Material
Nitrile
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
5900
Housing Coating
Standard Painted
Collar Type
Single Collar

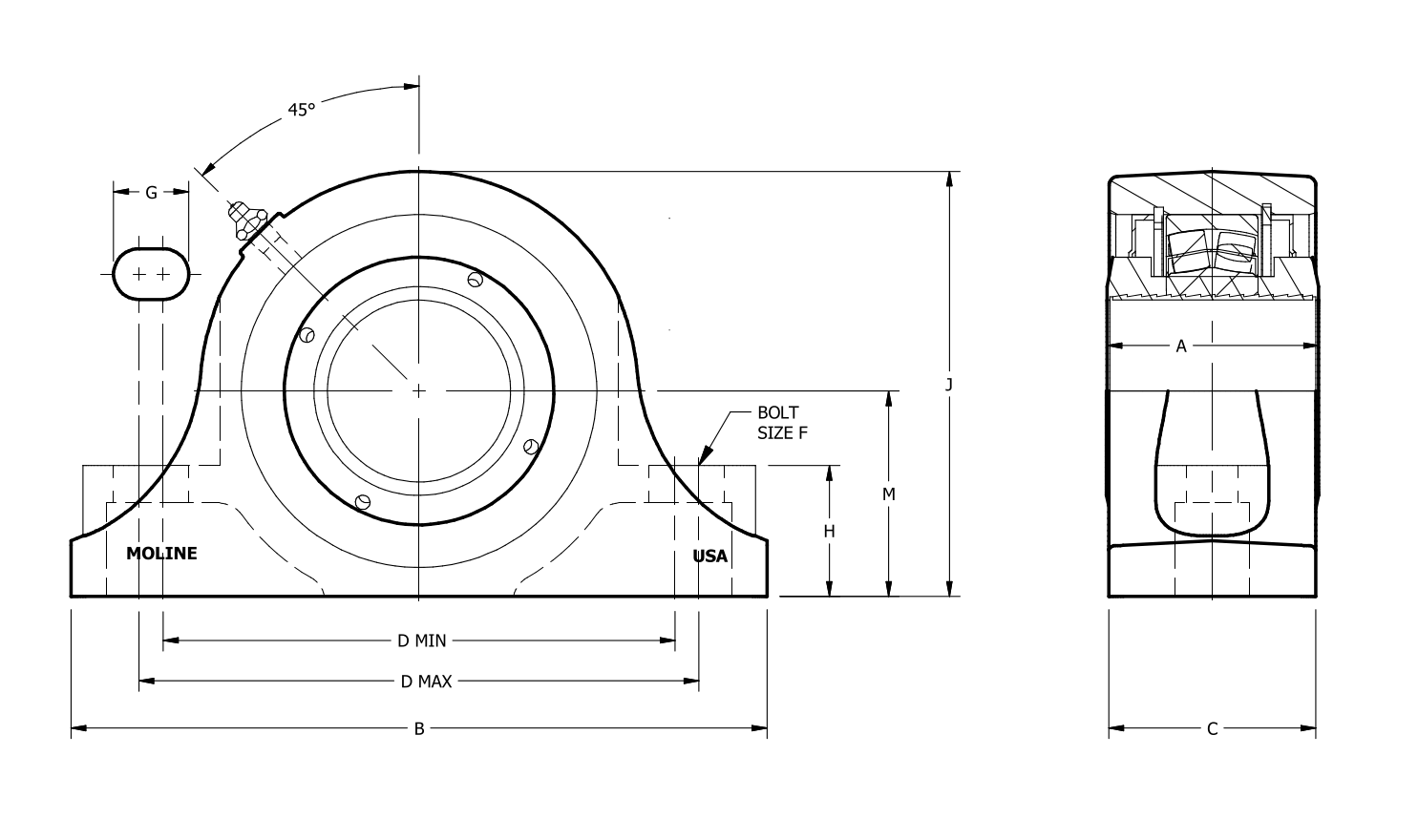

ALength Through Bore2 9⁄16
BHousing Base Length6 7⁄8
CHousing Base Width2 3⁄16
DBolt Hole Center to Center5
Min DBolt Hole Center to Center Minimum4 11⁄16
Max DBolt Hole Center to Center Maximum5 5⁄16
FBolt Diameter [Nominal]1⁄2
GBolt Hole Slot Length15⁄16
HHousing Base Height1 3⁄16
JOverall Housing Height3 7⁄8
MBase to Center Height1 7⁄8
