Type E·Wide Slot Take-up
3-7/16 TYPE E WIDE SLOT TAKE-UP WITH SINGLE COLLAR INSERT & LABYRINTH SEALS
19351307AL
Made of Cast Iron, this Solid Type E Wide Slot Take-up is a Non-Expansion Mounted Roller Bearing Bearing with a 3 7⁄16 in (3.4375 in) shaft size. Includes a Steel Set Screw Locking Insert with a Single Collar, an available Balanced Steel and Teflon Labyrinth Seal made of Steel and Teflon, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19351307AL
Series
Type E
Housing Type
Wide Slot Take-up
Shaft Size
3 7⁄16" (3.4375″ / 87.31 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
45 lb
Insert Number
42343DE | NPE42343DEE-401C4
Static Load
108000 lbf
Dynamic Load
19600 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
620 in-lbs
Radial Slip Resistance
16000 lbf
Open End Cap Part #
18621307
Closed End Cap Part #
18620307
Angular Misalignment (Degrees)
0.05
Product Family
Mounted Roller Bearing
Rolling Element
Tapered Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Balanced Steel and Teflon Labyrinth Seal
Seal Type Material
Steel and Teflon
Seal Type Operating Range (F)
0° - 350°
Seal Type Maximum Speed (RPM)
1640
Housing Coating
Standard Painted
Collar Type
Single Collar

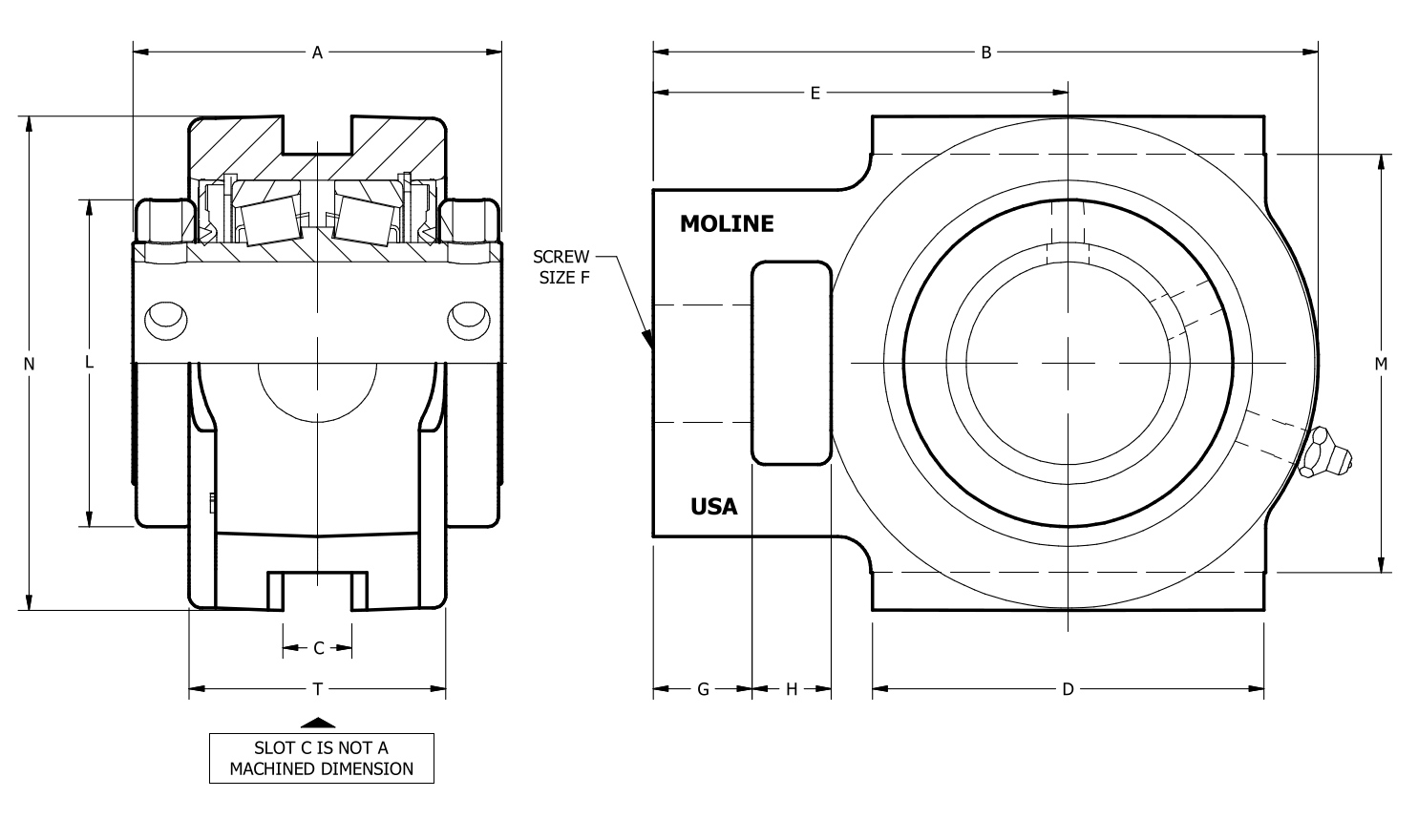

ALength Through Bore5
BHousing Length10 1⁄4
CSlot Width1 25⁄32
DSlot Length6
EShaft Centerline to End of Tail6 3⁄8
FTravel Rod Diameter [Nominal]1 3⁄4
GEnd of Tail to Travel Nut Opening1 1⁄16
HTravel Nut Opening Length1 5⁄8
JTail Height4 7⁄8
KTravel Nut Opening Height2 7⁄8
MSlot to Slot Spacing6 13⁄16
NHousing Height7 13⁄16
THousing Width3 5⁄8
