Type E·4-Bolt Pillow Block
5-7/16 TYPE E 4-BOLT PILLOW BLOCK WITH SINGLE COLLAR INSERT
19341507A
Made of Cast Iron, this Solid Type E 4-Bolt Pillow Block is a Non-Expansion Mounted Roller Bearing Bearing with a 5 7⁄16 in (5.4375 in) shaft size. Includes a Steel Set Screw Locking Insert with a Single Collar, an available Standard V-Guard Contact Seal made of Nitrile, Teflon and Steel, and a Standard Painted finish, this bearing is ready for even the toughest of jobs.
- Custom Colors, Powder Coating, Stainless Steel Coating, Nickel Plating, Epoxy Coatings, and Teflon Coatings can be quoted upon request.
Part Number
19341507A
Series
Type E
Housing Type
4-Bolt Pillow Block
Shaft Size
5 7⁄16" (5.4375″ / 138.11 mm)
Expansion / Non-Expansion
Non-Expansion
Weight
243 lb
Insert Number
JM736149
Static Load
354000 lbf
Dynamic Load
41500 lbf
Grease Fitting Size
1/8-27 NPT
Set Screw Torque
2150 in-lbs
Radial Slip Resistance
42400 lbf
Open End Cap Part #
18601507
Closed End Cap Part #
18600507
Angular Misalignment (Degrees)
0.05
Product Family
Mounted Roller Bearing
Rolling Element
Tapered Roller
Housing Construction
Solid
Insert Material
Steel
Locking Style
Set Screw Locking
Lubrication Type
Lithium Complex Grease
Housing Material
Class 30 Cast Iron
Seal Type
Standard V-Guard Contact Seal
Seal Type Material
Nitrile, Teflon and Steel
Seal Type Operating Range (F)
0° - 250°
Seal Type Maximum Speed (RPM)
915
Housing Coating
Standard Painted
Collar Type
Single Collar

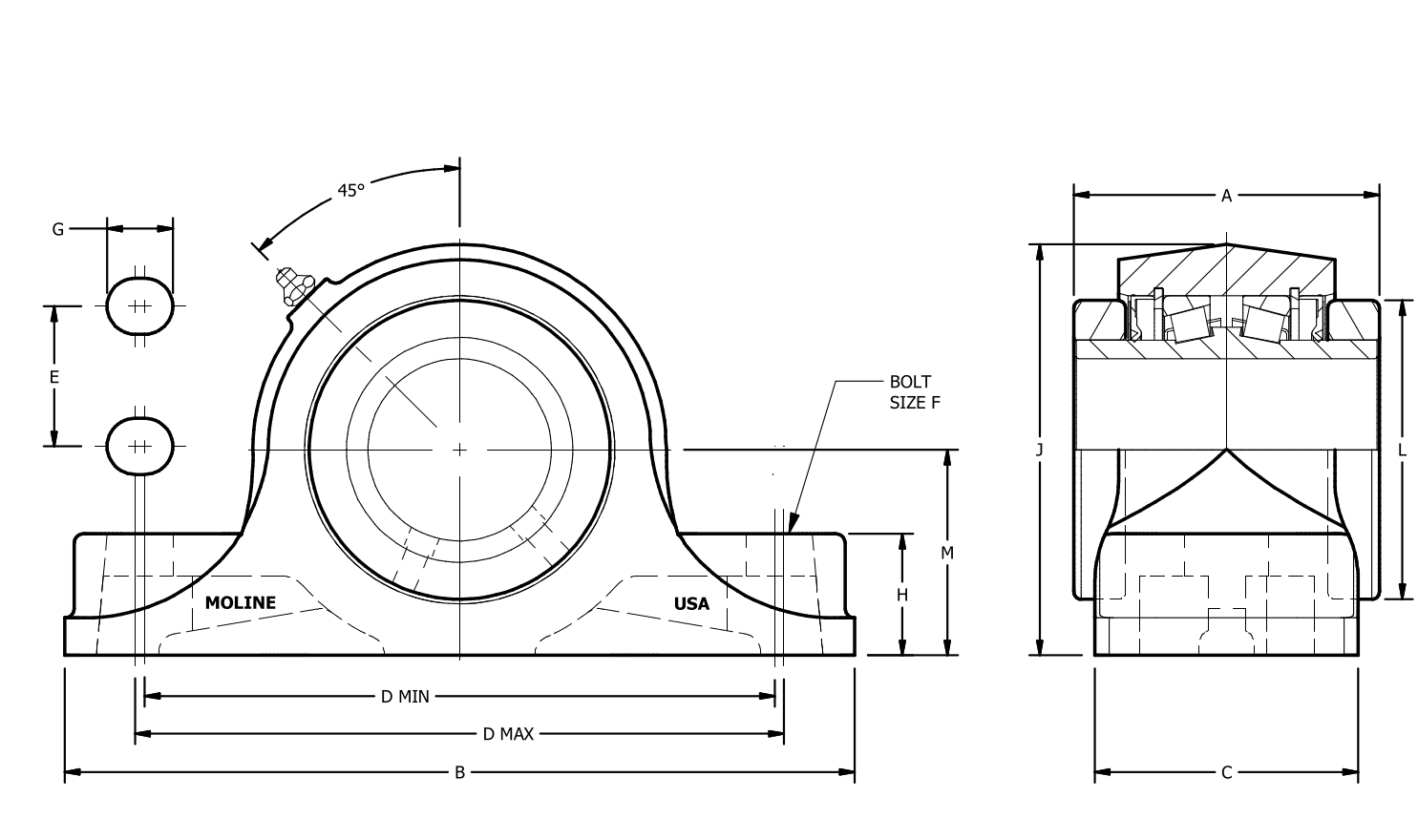

ALength Through Bore9
BHousing Base Length22
CHousing Base Width6 1⁄4
DBolt Hole Center to Center18 1⁄4
Min DBolt Hole Center to Center Minimum17 3⁄8
Max DBolt Hole Center to Center Maximum19 1⁄8
EBolt Spacing [Width]3 3⁄4
FBolt Diameter [Nominal]1
GBolt Hole Slot Length2
HHousing Base Height3 1⁄4
JOverall Housing Height13 3⁄16
LDrive Collar Outside Diameter [OD]9 3⁄8
MBase to Center Height6 11⁄16
