FX09 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
Pricing and availability are confirmed by our sales team after a quote request is submitted. Add this item to your quote and we'll respond with lead time and pricing within one business day.
Medium Duty UCX·4-Bolt Flange

FX09 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING

11161111

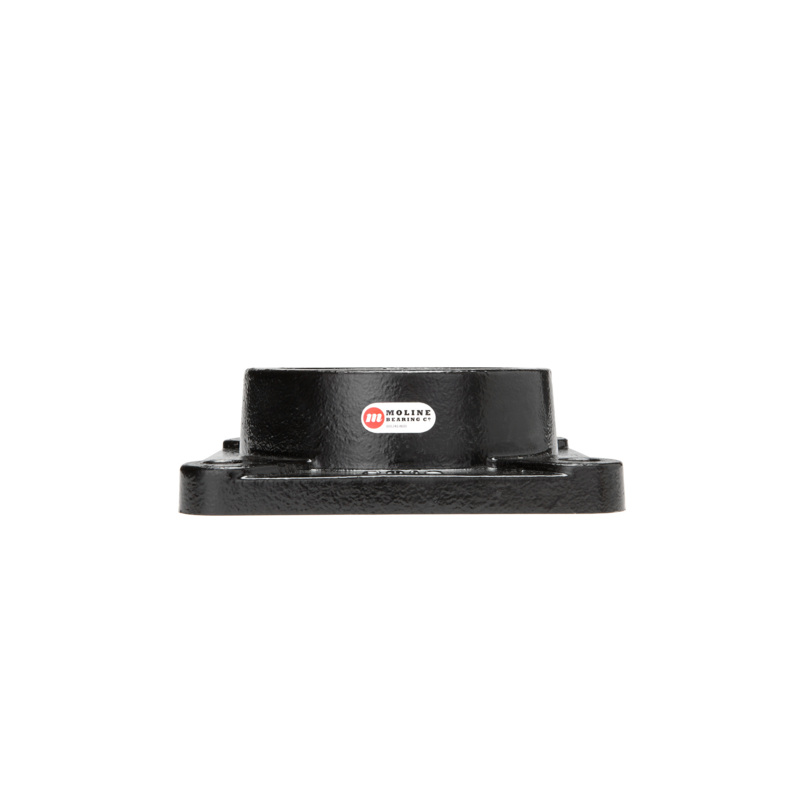

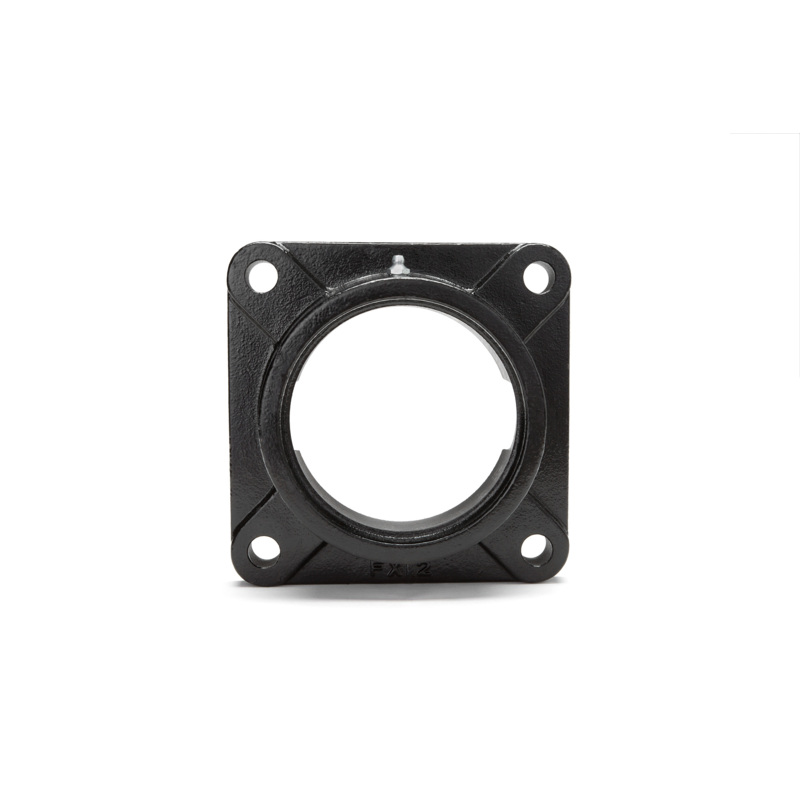

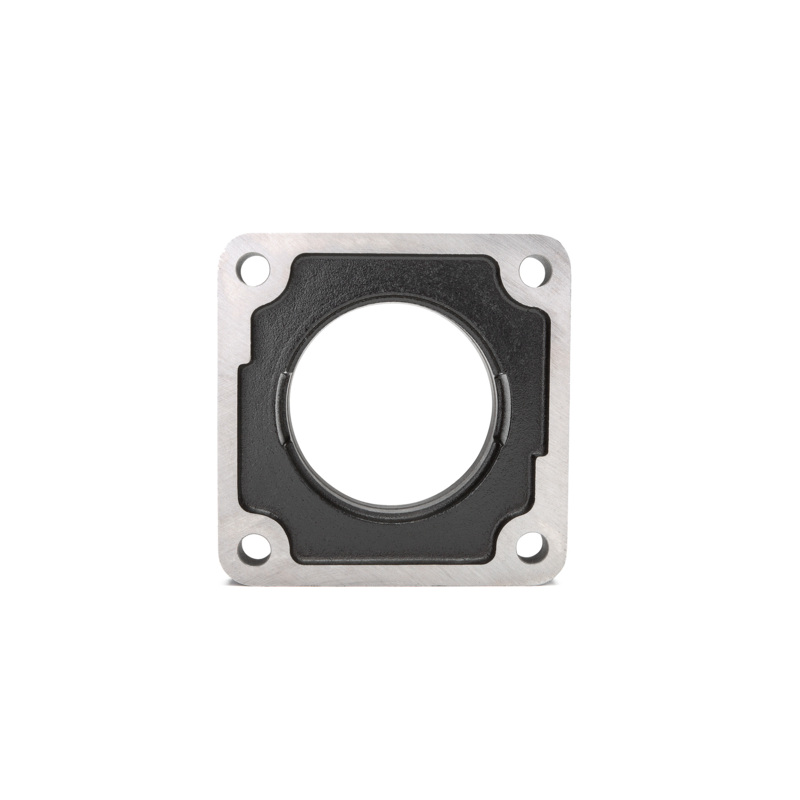

The FX09 Medium Duty UCX 4-Bolt Flange Housing is Moline Bearing Company part 11161111, the housing on its own with no insert: Class 30 cast iron, painted, for UCX-style (set screw locking) inserts fitting 1 5⁄8", 1 11⁄16", 1 3⁄4" shafts. Ordered as a replacement housing or to pair with your own insert.

Part Number
11161111
Series
Medium Duty UCX
Housing Type
4-Bolt Flange
Shaft Size
0" (0″ / 0 mm)
Weight
3.3 lb
Housing Number
FX09
PDF Catalog
Product Family
Ball Bearing
Housing Material
Class 30 Cast Iron
Housing Coating
Standard Painted

Similar Products

FX20 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
FX20 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
11161315
0"
FX14 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
FX14 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
11161211
0"
FX06 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
FX06 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
11161104
0"
FX08 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
FX08 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
11161108
0"
FX18 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
FX18 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
11161308
0"
FX15 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
FX15 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING
11161215
0"

FX09 4-BOLT FLANGE MEDIUM DUTY BALL BEARING HOUSING

The FX09 Medium Duty UCX 4-Bolt Flange Housing is Moline Bearing Company part 11161111, the housing on its own with no bearing insert: Class 30 cast iron with a standard painted finish. It is ordered as a replacement for a damaged housing, or to pair with a separately specified insert.

Fits

With the right insert it takes 1 5⁄8", 1 11⁄16", 1 3⁄4" shafts, using UCX-style (set screw locking) inserts (UCX09-26, UCX09-27, UCX09-28). Complete units built on this housing: 29411110, 29411111, 29411112.

Shipping weight: 3.3 lb.

Applications

These units are manufactured overseas for Moline Bearing Company to the quality standard set by the bearing industry, at a lower price. Medium Duty ball bearing units go into drives that outgrow a normal-duty unit but do not need a roller bearing: conveying, screening, material handling, and food and beverage equipment. It is dimensionally interchangeable with industry-standard UCX-series units of the same size.
